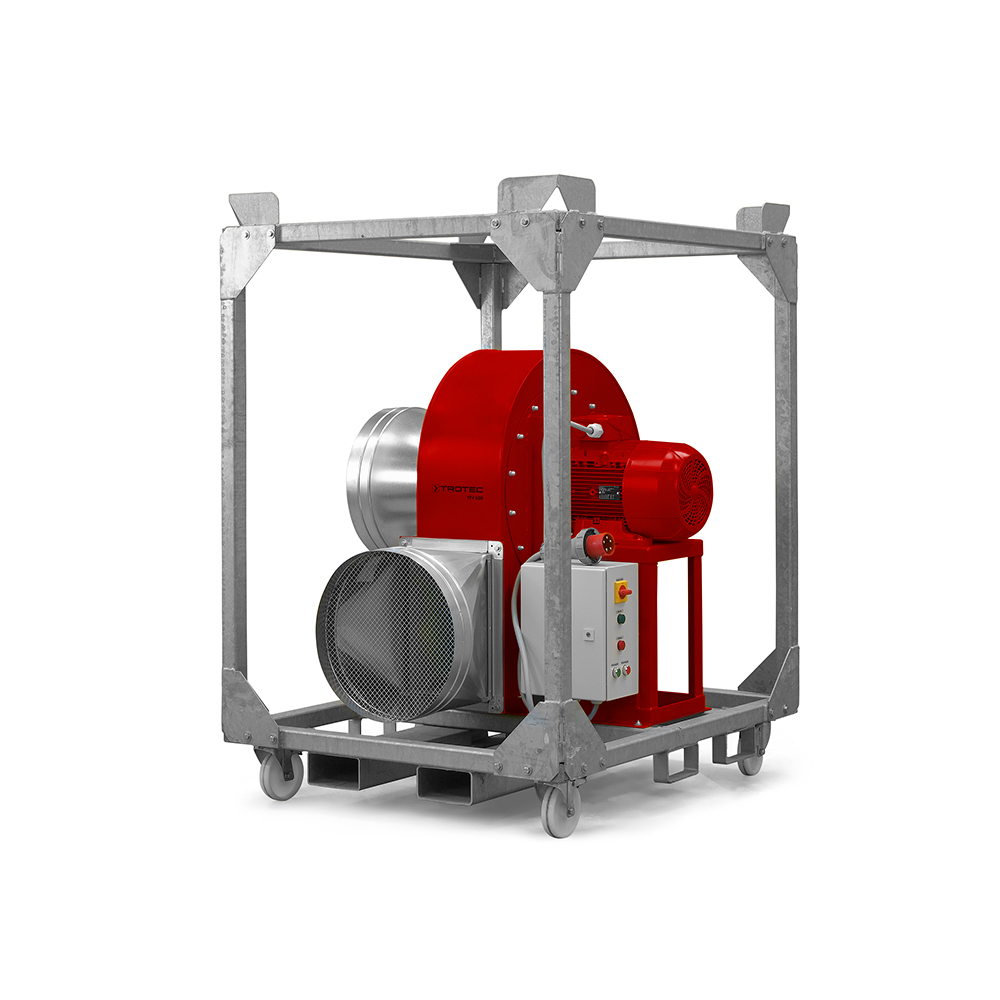

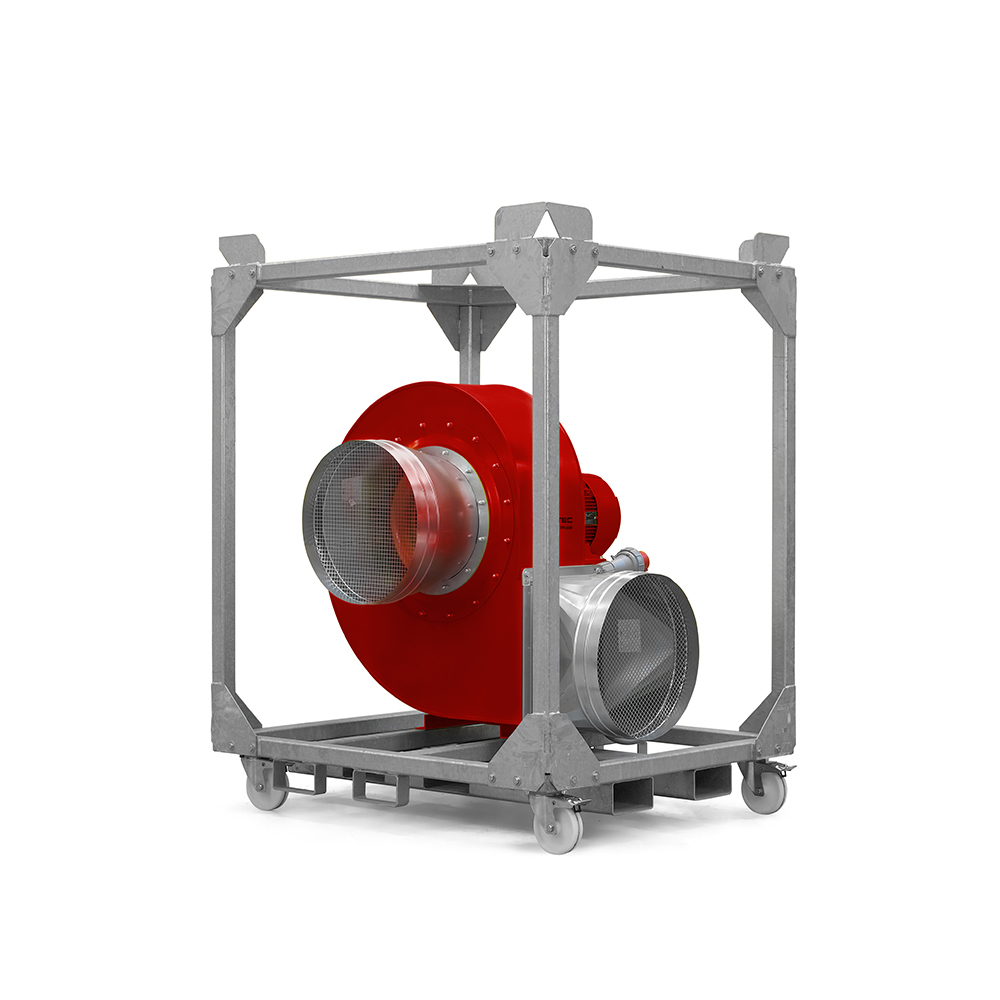

Trotec TFV 600 Ex – radial fan

58918,00 ₾

Radial fans for explosion protection zones

The TFV 600 Ex is a heavy-duty explosion-proof radial fan designed for use in hazardous environments. With an airflow rate of up to 6,000m³/h, it can quickly and effectively ventilate large areas in areas where there is a risk of explosion. The fan features a high-performance motor and a durable steel construction that is certified for use in explosive atmospheres. It also comes with a convenient carrying handle and is stackable for easy storage. With its impressive performance and explosion-proof design, the TFV 600 Ex is the perfect choice for demanding ventilation tasks in hazardous settings.

Key features

Robust high-quality radial fan
Explosion group II, category 3G, temperature class 4
Fan motor is placed outside of the main air current

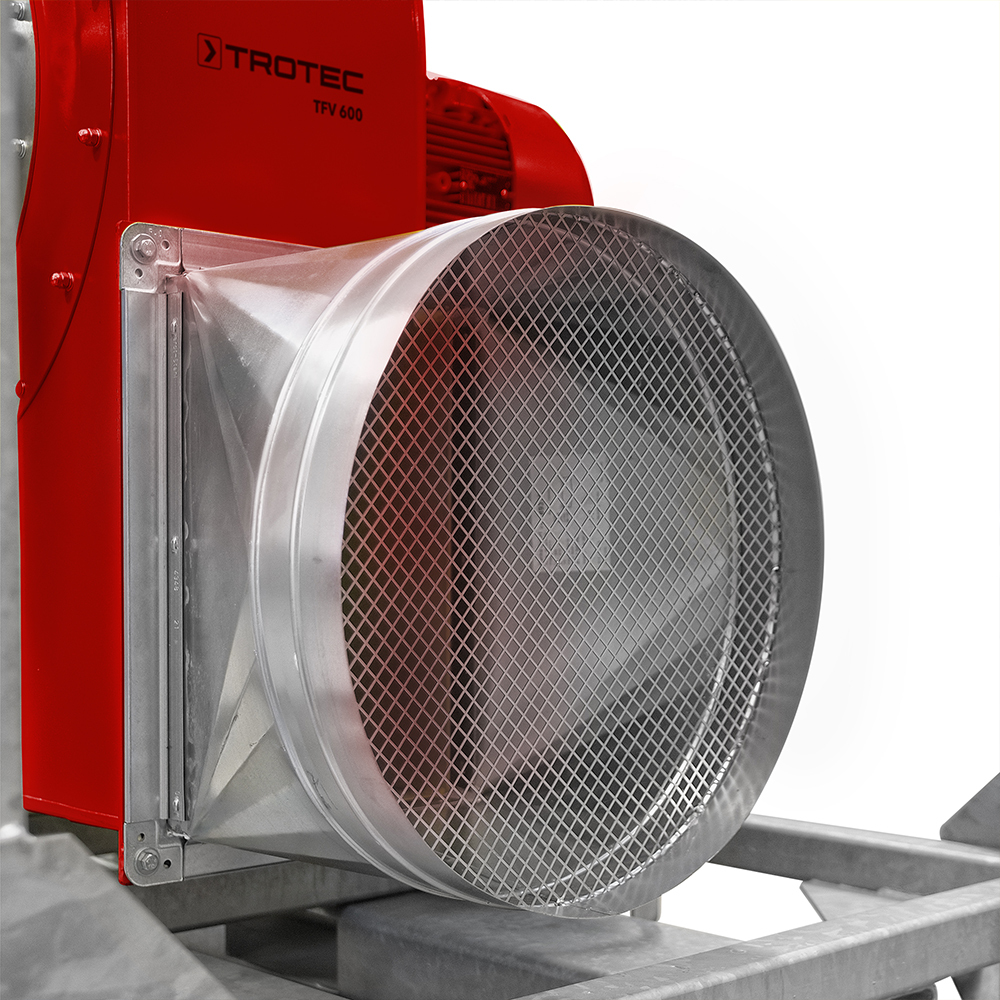

Connectable to intake and exhaust ducts
Stable characteristics and constantly high pressure
Optionally also available for explosion group II, category 2G (zone 1), category 2D (zone 21) and category 3D (zone 2)

Product specifications

Specifications	Units	TFV 600 Ex
Air volume freely blowing max.	m³/h	16,000
Air flow		blowing out / sucking in
Air discharge speed	m/s (km/h)	28/100.8
Fan stages		1
Air pressure max.	Pa	4,900
Max. transport medium temperature	°C	80
Power supply	V/Hz	400/50
Power input	kW	18.5
Necessary fuse	A	32
Explosion protection		2/ II3G, T4
Type of protection		IP55
Sound level @3m	dB(A)	78
Product size (l x w x h)	mm	1305 x 1250 x 1170
Weight	kg	233

Suitable for:

Agriculture
Construction
Events and festivals
Industrial, factories and production

Rental companies
Warehouses and storage
Water damage restoration
