Vibro-WS: Anti-vibration Supports for Gypsumboard Partitions
Antivibration supports for gypsumboard partitions. It can be used in recording or rehearsal studio applications, or wherever a floating wall is required.
DESCRIPTION
Vibro-WS Anti-vibration Supports is a specially designed homogeneous rubber support systems for gypsum board partitions. The semi-cylindrical modulation at their base (for WS.75 & 100) and the transversal holes (for WS.50), provides the necessary space for the rubber expansion to increase the deflection and consequently the vibration insulation. The inclined flaps of Vibro-WS cover the fixing bolts on the base and prevent possible contact with gypsum board.
APPLICATIONS
The application of Vibro-WS in floating gypsum board partitions:
Decreases the flanking noise transmissions.
Interrupt the heat-bridges and the increase of moisture between humid floors and walls.
INSTALLATION

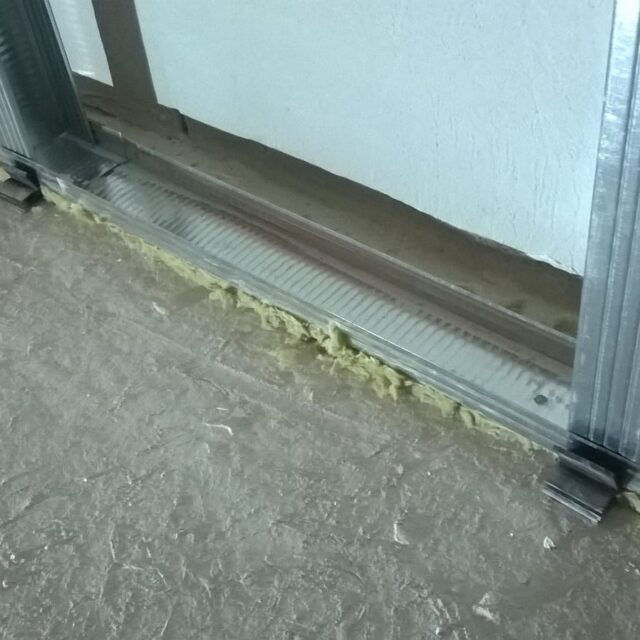

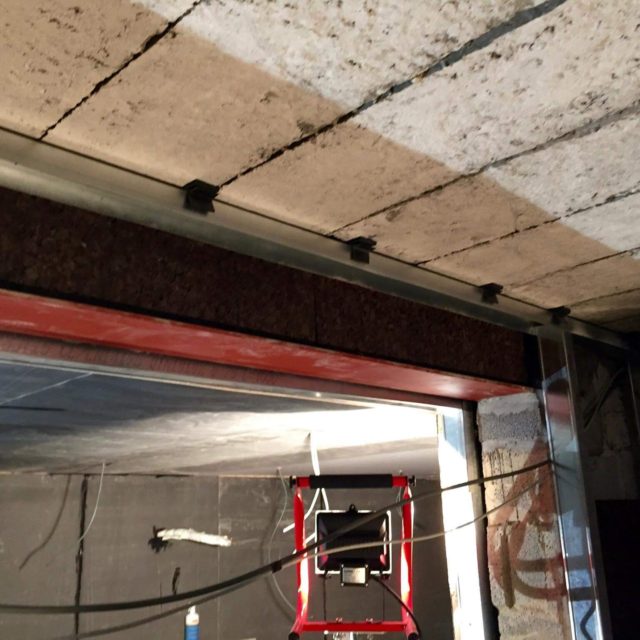

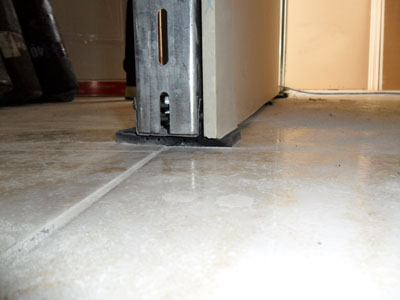

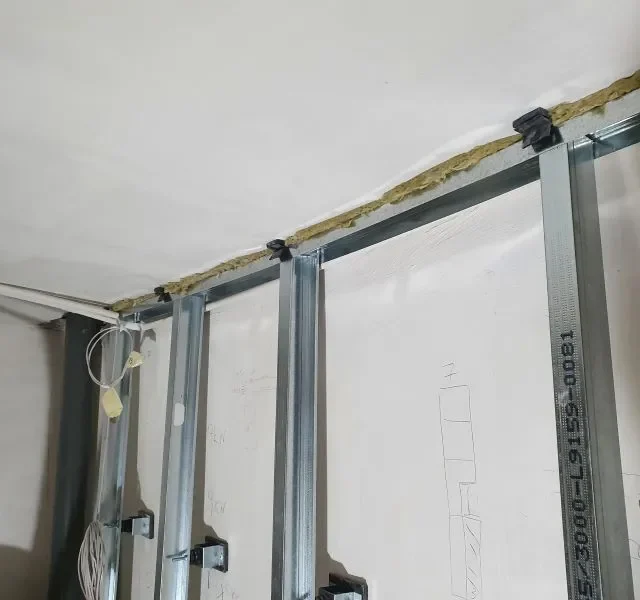

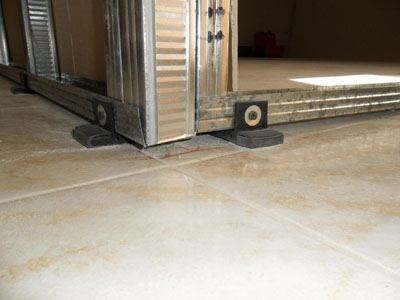

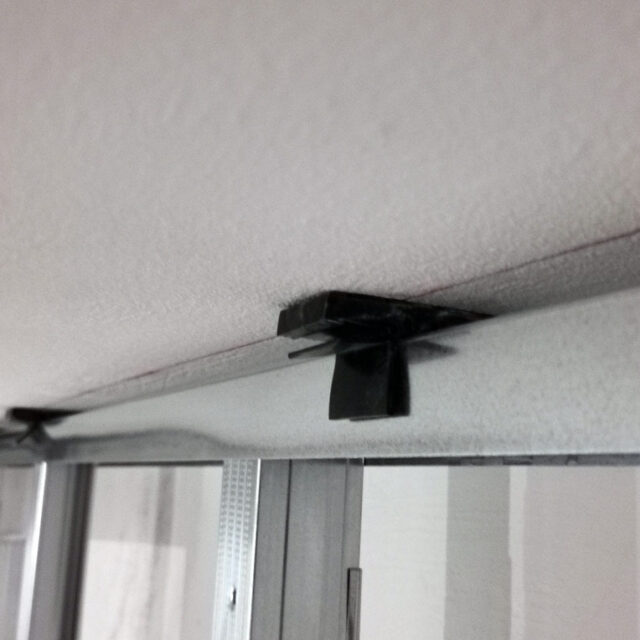

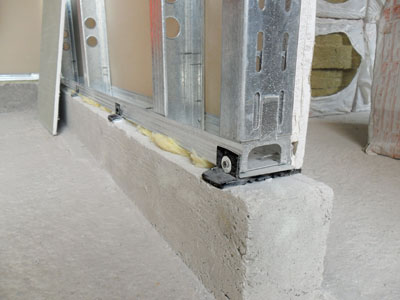

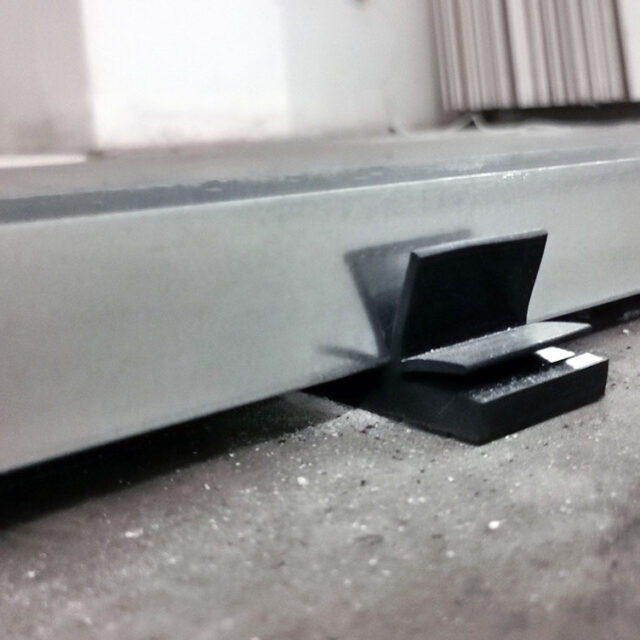

Vibro-WS Anti-vibration Supports for Gypsumboard Partitions is installed on floor or ceiling metal profiles (U-runner with width 50, 75 or 100mm) in correspondence to the C-studs or could also be installed unified, under the U-runner. They can be fixed on the profiles with bolts and on floor or ceiling with expansion bolts. The free spaces must be filled with sound absorption material (e.g. rockwool). Part or all of base’s lateral flaps, of Vibro-WS, can be cut easily due to its incisions, for applications with smaller thickness (e.g. single gypsumboard) than the flap’s length. In every fixed point metal washer must be also used.
REQUIRED QUANTITY
2 Pieces per 60 cm (one at the ceiling one at the floor).
MAXIMUM LOAD
80 kg per mounting point.
